Configuration Options¶

Required Values¶

The required values to pass to helm install or helm template commands can be found in our schema validation:

{
  "required": [
    "service",
    "gitSha"
  ]
}

Most fields have sensible defaults. Here are the core configuration options:

Values Key	Description	Default	Choices
`service.port`	Port for all services (vector/raster/stac)	8080	any valid port
`gitSha`	SHA for deployment tracking	gitshaABC123	any valid SHA

Database Configuration¶

PostgreSQL Cluster (Default)¶

Using Crunchydata's PostgreSQL Operator (postgresql.type: "postgrescluster"):

Values Key	Description	Default	Choices
`postgrescluster.enabled`	Enable PostgreSQL cluster. Must be set to `false` when using external databases	true	true/false
`postgrescluster.name`	Cluster name	Release name	any valid k8s name
`postgrescluster.postgresVersion`	PostgreSQL version	16	supported versions
`postgrescluster.postGISVersion`	PostGIS version	"3.4"	supported versions

External Database¶

For external databases, set postgresql.type to either external-plaintext or external-secret and set postgrescluster.enabled: false.

Using plaintext credentials (external-plaintext):

postgrescluster:
  enabled: false
postgresql:
  type: "external-plaintext"
  external:
    host: "your-host"
    port: "5432"
    database: "eoapi"
    credentials:
      username: "eoapi"
      password: "your-password"

Using Kubernetes secrets (external-secret):

postgresql:
  type: "external-secret"
  external:
    existingSecret:
      name: "your-secret"
      keys:
        username: "username"
        password: "password"
    host: "your-host"  # can also be in secret
    port: "5432"       # can also be in secret
    database: "eoapi"  # can also be in secret

PgSTAC Configuration¶

Control PgSTAC database behavior and performance tuning:

Core Settings¶

Configure via pgstacBootstrap.settings.pgstacSettings:

Values Key	Description	Default	Format
`queue_timeout`	Timeout for queued queries	"10 minutes"	PostgreSQL interval
`use_queue`	Enable query queue mechanism	"false"	boolean string
`update_collection_extent`	Auto-update collection extents	"true"	boolean string

Context Settings¶

Control search result count calculations:

Values Key	Description	Default	Format
`context`	Context mode	"auto"	"on", "off", "auto"
`context_estimated_count`	Row threshold for estimates	"100000"	integer string
`context_estimated_cost`	Cost threshold for estimates	"100000"	integer string
`context_stats_ttl`	Stats cache duration	"1 day"	PostgreSQL interval

Automatic Maintenance Jobs¶

CronJobs are conditionally created based on PgSTAC settings:

Queue Processor (created when use_queue: "true"): - queueProcessor.schedule: "0 * * * *" (hourly) - Processes queries that exceeded timeout

Extent Updater (created when update_collection_extent: "false"): - extentUpdater.schedule: "0 2 * * *" (daily at 2 AM) - Updates collection spatial/temporal boundaries

By default, no CronJobs are created (use_queue=false, update_collection_extent=true).

Both schedules are customizable using standard cron format.

Example configuration:

pgstacBootstrap:
  settings:
    pgstacSettings:
      # Performance tuning for large datasets
      queue_timeout: "20 minutes"
      use_queue: "true"
      update_collection_extent: "false"

      # Optimize context for performance
      context: "auto"
      context_estimated_count: "50000"
      context_estimated_cost: "75000"
      context_stats_ttl: "12 hours"

Queryables Configuration¶

Configure custom queryables for STAC API search using pypgstac load-queryables. Queryables can be loaded from files in the chart or from external ConfigMaps.

Basic Configuration¶

Each queryable requires a name field and either a file (from chart) or configMapRef (external ConfigMap):

pgstacBootstrap:
  settings:
    queryables:
      # File-based queryable from chart
      - name: "common-queryables.json"
        file: "initdb-data/queryables/test-queryables.json"

      # External ConfigMap reference
      - name: "custom-queryables.json"
        configMapRef:
          name: my-custom-queryables-configmap
          key: queryables.json

Configuration Parameters¶

Parameter	Description	Required	Example
`name`	Name for the queryables file	Yes	"common-queryables.json"
`file`	Path to queryables file in chart	No*	"initdb-data/queryables/test-queryables.json"
`configMapRef.name`	Name of external ConfigMap	No*	"my-queryables-cm"
`configMapRef.key`	Key in the ConfigMap	No*	"queryables.json"
`indexFields`	Fields to create indexes for	No	["platform", "instruments"]
`deleteMissing`	Delete queryables not in this file	No	true
`collections`	Apply to specific collections	No	["collection-1", "collection-2"]

* Either file or configMapRef must be provided

Advanced Example¶

Mix file-based and ConfigMap-based queryables with optional parameters:

pgstacBootstrap:
  settings:
    queryables:
      # Standard queryables from chart with indexes
      - name: "common-queryables.json"
        file: "initdb-data/queryables/common-queryables.json"
        indexFields: ["platform", "instruments"]
        deleteMissing: true

      # Custom queryables from external ConfigMap
      - name: "sentinel-queryables.json"
        configMapRef:
          name: sentinel-queryables-cm
          key: queryables.json
        indexFields: ["sat:orbit_state", "sar:instrument_mode"]
        collections: ["sentinel-1-grd"]

      # Collection-specific queryables
      - name: "landsat-queryables.json"
        configMapRef:
          name: landsat-queryables-cm
          key: data.json
        collections: ["landsat-c2-l2"]

External ConfigMap Setup¶

When using configMapRef, create the ConfigMap separately:

# From a file
kubectl create configmap my-queryables-cm \
  --from-file=queryables.json=./my-queryables.json \
  -n eoapi

# From literal JSON
kubectl create configmap my-queryables-cm \
  --from-literal=queryables.json='{"$schema": "...", "properties": {...}}' \
  -n eoapi

The queryables will be automatically loaded during the PgSTAC bootstrap process.

ArgoCD Integration¶

For ArgoCD deployments, you can control job sync order using the jobAnnotations field. See the ArgoCD Integration Guide for detailed configuration and best practices.

Cloud Storage Authentication¶

eoAPI services access COG files in cloud storage buckets. Use cloud-native authentication instead of long-lived credentials:

AWS (IRSA)¶

serviceAccount:
  create: true
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::123456789012:role/eoapi-s3-access

The raster service automatically uses IRSA credentials via the AWS SDK credential chain.

Azure (Workload Identity)¶

serviceAccount:
  create: true
  annotations:
    azure.workload.identity/client-id: "your-client-id"
    azure.workload.identity/tenant-id: "your-tenant-id"

GCP (Workload Identity)¶

serviceAccount:
  create: true
  annotations:
    iam.gke.io/gcp-service-account: eoapi-gcs-sa@project.iam.gserviceaccount.com

All services using GDAL (raster API with titiler-pgstac) automatically use these credentials through their respective cloud SDKs. No environment variables or hardcoded credentials needed.

Ingress Configuration¶

Unified ingress configuration supporting both NGINX and Traefik:

Values Key	Description	Default	Choices
`ingress.enabled`	Enable ingress	true	true/false
`ingress.className`	Ingress controller	"nginx"	"nginx", "traefik"
`ingress.host`	Ingress hostname	""	valid hostname
`ingress.rootPath`	Doc server root path	""	valid path

See Unified Ingress Configuration for detailed setup.

Service Configuration¶

Each service (stac, raster, vector, multidim) supports:

Values Key	Description	Default	Choices
`{service}.enabled`	Enable the service	varies	true/false
`{service}.image.name`	Container image	varies	valid image
`{service}.image.tag`	Image tag	varies	valid tag
`{service}.autoscaling.enabled`	Enable HPA	false	true/false
`{service}.autoscaling.type`	Scaling metric	"requestRate"	"cpu", "requestRate", "both"

Example service configuration:

raster:
  enabled: true
  autoscaling:
    enabled: true
    minReplicas: 2
    maxReplicas: 10
    type: "requestRate"
    targets:
      cpu: 75
      requestRate: "100000m"

STAC Browser¶

Values Key	Description	Default	Choices
`browser.enabled`	Enable STAC browser	true	true/false
`browser.replicaCount`	Number of replicas	1	integer > 0
`browser.ingress.enabled`	Enable browser ingress	true	true/false

Deployment Architecture¶

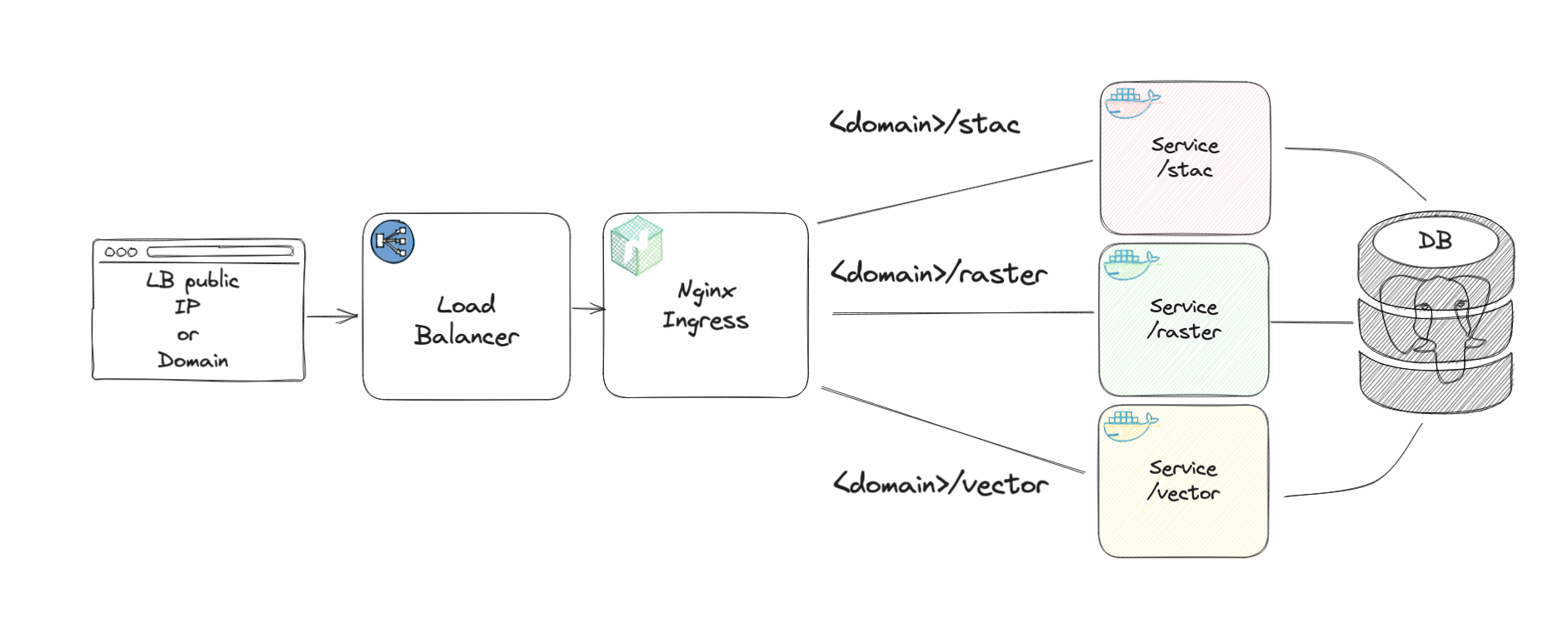

When using default settings, the deployment looks like this:

The deployment includes: - HA PostgreSQL database (via PostgreSQL Operator) - Sample data fixtures - Load balancer with path-based routing: - /stac → STAC API - /raster → Titiler - /vector → TiPG - /browser → STAC Browser - / → Documentation

Health Monitoring¶

All services include health check endpoints with automatic liveness probes:

Service	Health Endpoint	Response
STAC API	`/stac/_mgmt/ping`	HTTP 200, no auth required
Raster API	`/raster/healthz`	HTTP 200, no auth required
Vector API	`/vector/healthz`	HTTP 200, no auth required

The Kubernetes deployment templates automatically configure livenessProbe settings for regular health checks. See the deployment template for probe configuration details.

Advanced Configuration¶

Autoscaling Behavior¶

Fine-tune scaling behavior:

autoscaling:
  behavior:
    scaleDown:
      stabilizationWindowSeconds: 60
    scaleUp:
      stabilizationWindowSeconds: 0

See Kubernetes HPA documentation for details.

Resource Requirements¶

Each service can have custom resource limits:

settings:
  resources:
    limits:
      cpu: "768m"
      memory: "1024Mi"
    requests:
      cpu: "256m"
      memory: "512Mi"

Additional Service Settings¶

Each service also supports:

settings:
  labels: {}                # Additional pod labels
  extraEnvFrom: []         # Additional environment variables from references
  extraVolumeMounts: []    # Additional volume mounts
  extraVolumes: []         # Additional volumes
  envVars: {}             # Environment variables
